16925

SCHNEIDER 125A 300MA 4P RCCB

0 In Stock

View Stock Locations

Need More Stock?
Get Lead time

Price

£691.82

exc. VAT

Price

£830.18

inc. VAT

BPX price includes a 28.00% discount
List price
£960.86

exc. VAT

Have you seen this product cheaper somewhere else? Let us know and we will try to match the price

Qty

Add to Cart

Have a question? Speak with a Sales Engineer now

Your cart total:

.

Checkout

24/07/2025

Schneider Electric 16925 Specification

Specification coming soon. Please check the downloads tab, or contact your local branch for further details.

Schneider Electric 16925 Description

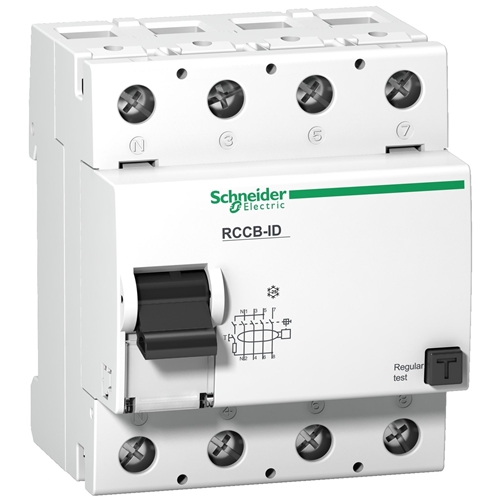

This Acti9 RCCB-ID product is a residual current circuit breaker (RCCB). It is a 4P circuit breaker with 125A In rated current, 300mA earth leakage sensitivity and A type protection class. This product protects against electrical shock by indirect contact and fire hazards. The status of the product is indicated via the 3 position toggle and a front panel indicator. The Acti9 RCCB-ID ensures protection in all industrial and tertiary buildings. This product is compliant with IEC 60947-3, IEC 60947-1 and IEC 61008 standard. The (Im/IÎ”m) rated breaking and making short circuit capacity is 1250A. The (Inc/IÎ”c) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 2000 cycles and a mechanical endurance going up to 5000 cycles. The Ue operational voltage is 400VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 86mm x (D) 76mm. The weight is 420g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25Â°C to 40Â°C. The storage temperature is from -40Â°C to 85Â°C.
